Horizontal Bead Mills
DMQX-Series
Bead Mills: DMQX?
The Ultimate In Bead Milling Versatility, Combining The Advantages Of Bead Milling And Circulation Grinding
Circulation Grinding is a cost-effective solution for grinding large quantities of material as it allows for a lower cost capital investment in equipment and grinding media than with many other grinding equipment options.
Additional benefits of circulation grinding include a narrower particle size distribution, the ability to continuously monitor the slurry, add ingredients to the premix tank at any time during the grinding cycle and control temperature more precisely since the slurry spends only 15-25 seconds in the grinding chamber.
DMQX??Horizontal Bead Milling Systems are available in either Lab or Production Models.
Scroll down for more details on our bead mills, or?contact us now for the right circulation grinding systems for your operation.
Rail system allows for easy maintenance and tank removal.

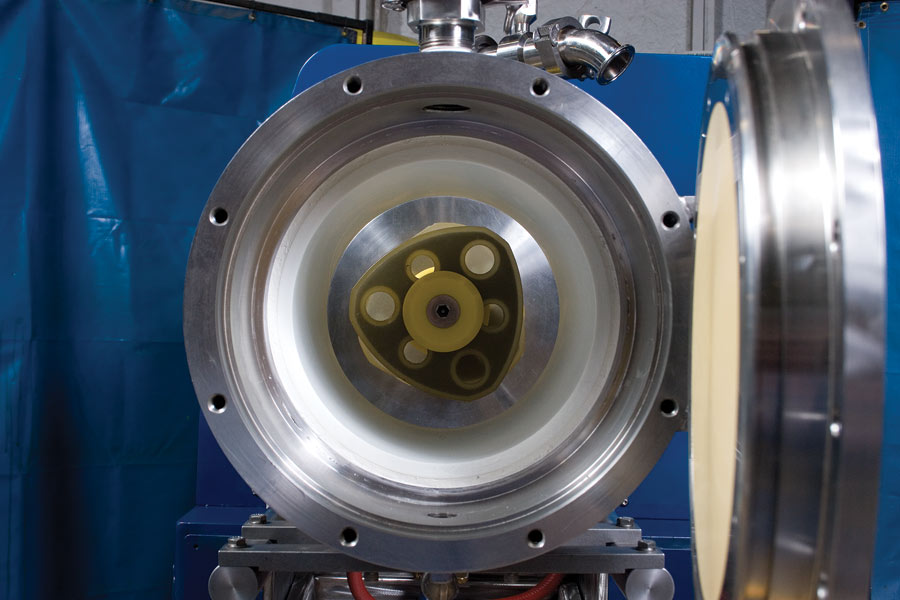

Hinged door for easy access to grinding chamber.
Features/Benefits
- Operates in either circulation or continuous mode
- Discs/Rods can be either hardened steel, 440C stainless steel, plastic, polyurethane, or zirconium oxide
- Separator rings can be either hardened steel, 440C stainless steel, or zirconium oxide
- Grinding chamber can be either 304 stainless steel or polyurethane, alumina, or zirconium oxide-lined
- Cartridge-type double mechanical seal for easy maintenance
- Easily adjustable product discharge openings maximize throughput and accommodate grinding media from 2mm down to 0.3mm
- Large, heavy-duty media separator located at the end of the mill makes service fast and easy
- Production-sized mills include rail systems for easy maintenance and tank removal
- Variable frequency drives are standard
- Systems can be adapted for data acquisition
- Installation requires no anchor bolts or special foundation

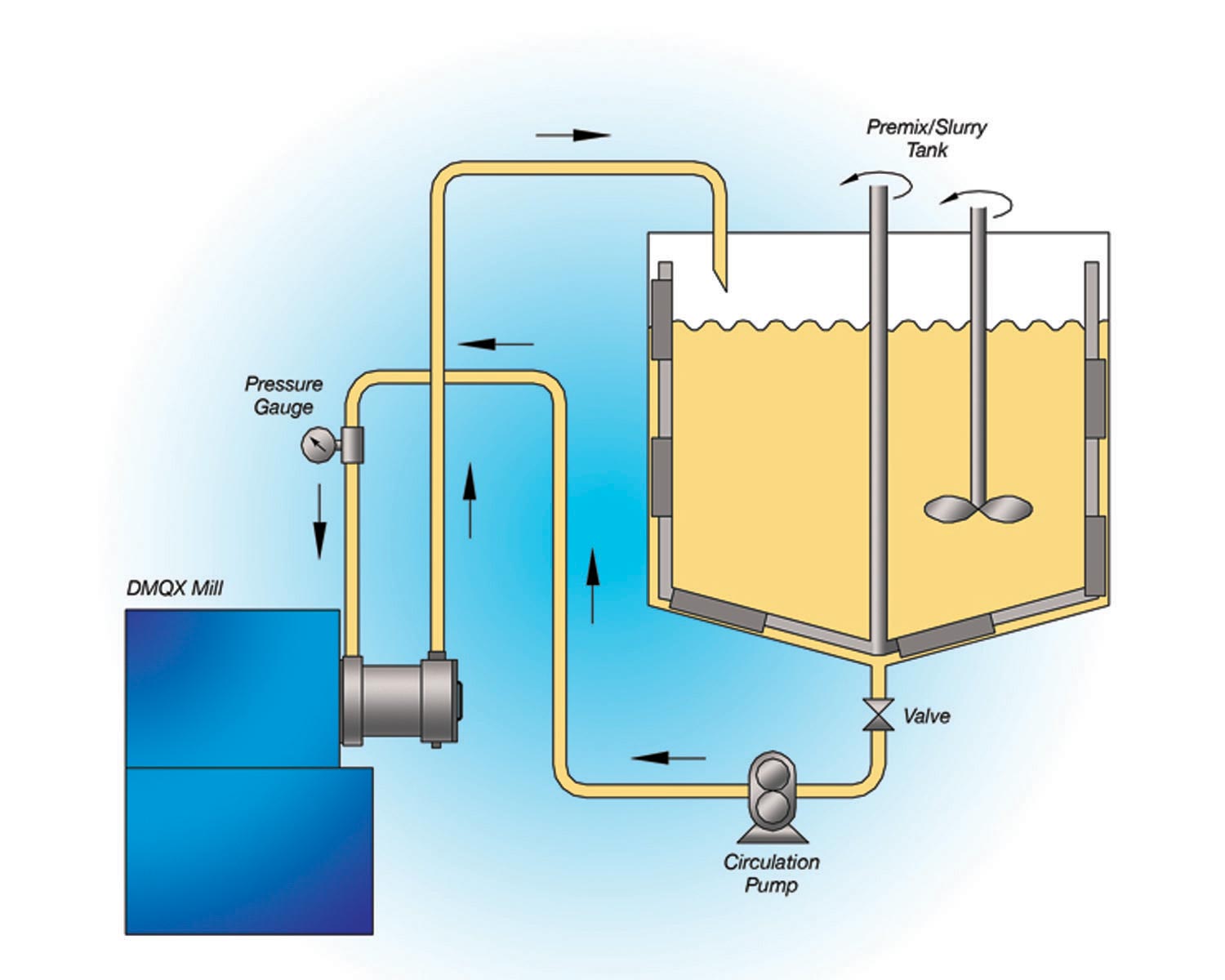

How Circulation Grinding Works

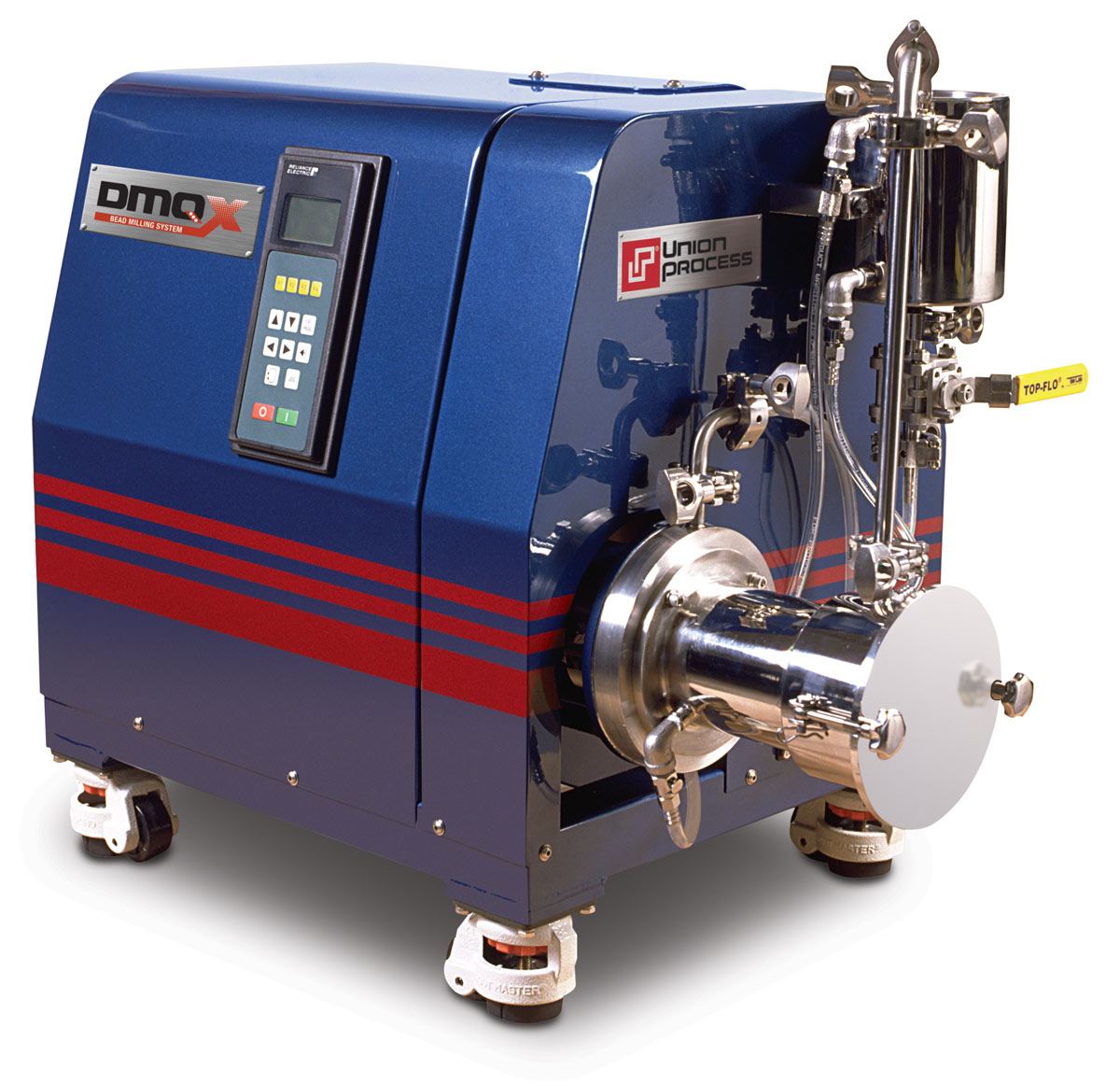

This lab mill is an ideal size for testing small amounts of material. Results from the DMQX? Bead Mill may be scaled up to production size models.
